前言

原本是要让 AI 来玩狼人杀的，后来感觉思路不是很清晰，所以干脆今天就先做个单人游戏——扫雷，先给大家看一下成果，完整代码见 https://github.com/zong4/AILearning。

游戏规则

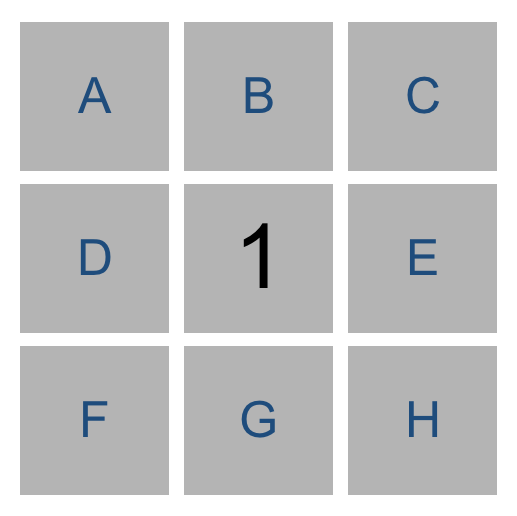

这里先给不了解游戏规则的人介绍一下游戏，扫雷中的每个数字代表的是，以此数字为中心的九宫格内有几颗地雷，如下图就表示 A～H 这八个格子里有一颗雷。

扫雷逻辑

OK，那知道了游戏规则后，我们怎么来表示这个 Knowledge Base 呢？当然你可以像昨天说的那样用以下的式子来表示。

1
Or(A, B, C, D, E, F, G, H)

但是，别忘了，上面的式子只能表达有至少一颗雷，但是没有表达出最多也只有一颗雷，具体还需要下面这一堆才行。

1
2
3
4
5
6
7
8
9
10
Or(
And(A, Not(B), Not(C), Not(D), Not(E), Not(F), Not(G), Not(H)),
And(Not(A), B, Not(C), Not(D), Not(E), Not(F), Not(G), Not(H)),
And(Not(A), Not(B), C, Not(D), Not(E), Not(F), Not(G), Not(H)),
And(Not(A), Not(B), Not(C), D, Not(E), Not(F), Not(G), Not(H)),
And(Not(A), Not(B), Not(C), Not(D), E, Not(F), Not(G), Not(H)),
And(Not(A), Not(B), Not(C), Not(D), Not(E), F, Not(G), Not(H)),
And(Not(A), Not(B), Not(C), Not(D), Not(E), Not(F), G, Not(H)),
And(Not(A), Not(B), Not(C), Not(D), Not(E), Not(F), Not(G), H),
)

光是一个 1 就这么复杂，那怎么行，所以我们得想一个新的表达方式。

知识表示

思考一下，扫雷其实说白了就三种操作。

  1. 如果数字正好等于未翻格子的数量，则代表那些全是雷。
  2. 如果数字为0，则代表周围没有雷。
  3. 切割子集。

第一条和第二条都很好理解，想象一下中间数字是8和0的情况就行了。

至于第三条，我们可以通过经典的12排雷给大家解释。

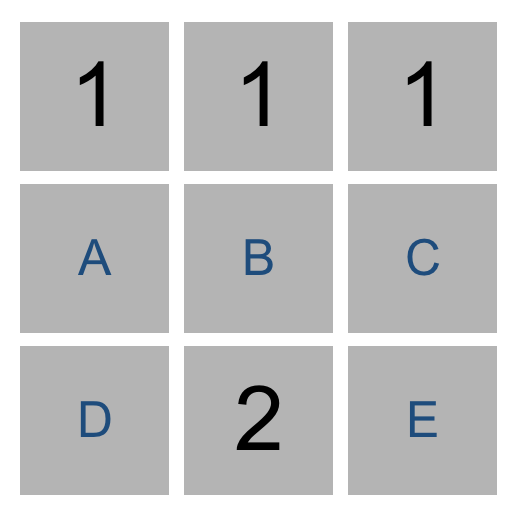

如下图，通过上面的1我们可以知道，ABC 中一定有一雷，又通过下面的2我们知道 ABCDE 中一定有两颗雷，所以我们可以得出 DE 中一定有一颗雷，这就是切割子集。

OK，那我们该用什么样的数据结构来表示呢？

相信聪明的朋友已经发现了，我在上面一直在说几何集合，没错，我们可以用集合来表示，具体表示形式如下。

在上面的例子中，我们可以说 {A, B, C} = 1，{A, B, C, D, E} = 2，然后得出 {D, E} = 1，也就是说我们有如下公式。

set1 = number1，set2 = number2，set2-set1 = number2-number1。

代码

运行代码

运行代码就给大家稍微带一下。

一块的话是画图的代码，每帧更新，没什么好说的。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
while True:
    ...

    # Draw board
    cells = []
    for i in range(HEIGHT):
        row = []
        for j in range(WIDTH):

            # Draw rectangle for cell
            rect = pygame.Rect(
                board_origin[0] + j * cell_size,
                board_origin[1] + i * cell_size,
                cell_size, cell_size
            )
            pygame.draw.rect(screen, GRAY, rect)
            pygame.draw.rect(screen, WHITE, rect, 3)

            # Add a mine, flag, or number if needed
            if game.is_mine((i, j)) and lost:
                screen.blit(mine, rect)
            elif (i, j) in flags:
                screen.blit(flag, rect)
            elif (i, j) in revealed:
                neighbors = smallFont.render(
                    str(game.nearby_mines((i, j))),
                    True, BLACK
                )
                neighborsTextRect = neighbors.get_rect()
                neighborsTextRect.center = rect.center
                screen.blit(neighbors, neighborsTextRect)

            row.append(rect)
        cells.append(row)

    ...

还有一块的话是 AI 的扫雷步骤，可以看到是先查找有没有安全的格子，没有的话就随机选。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
elif left == 1:
    mouse = pygame.mouse.get_pos()

    # If AI button clicked, make an AI move
    if aiButton.collidepoint(mouse) and not lost:
        move = ai.make_safe_move()
        if move is None:
            move = ai.make_random_move()
            if move is None:
                flags = ai.mines.copy()
                print("No moves left to make.")
            else:
                print("No known safe moves, AI making random move.")
        else:
            print("AI making safe move.")
        time.sleep(0.2)

        # use flags to mark mines
        for i in range(HEIGHT):
            for j in range(WIDTH):
                if (i, j) in ai.mines:
                    flags.add((i, j))

逻辑代码

OK，接下来看看大头逻辑代码。

首先是棋盘类，主要的话就是要判断格子上是不是雷已经它周围雷的数量，也就是要显示的数字。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
class Minesweeper():
    """
    Minesweeper game representation
    """

    def __init__(self, height=8, width=8, mines=8):

        # Set initial width, height, and number of mines
        self.height = height
        self.width = width
        self.mines = set()

        # Initialize an empty field with no mines
        self.board = []
        for i in range(self.height):
            row = []
            for j in range(self.width):
                row.append(False)
            self.board.append(row)

        # Add mines randomly
        while len(self.mines) != mines:
            i = random.randrange(height)
            j = random.randrange(width)
            if not self.board[i][j]:
                self.mines.add((i, j))
                self.board[i][j] = True

        # At first, player has found no mines
        self.mines_found = set()

    def is_mine(self, cell):
        i, j = cell
        return self.board[i][j]

    def nearby_mines(self, cell):
        """
        Returns the number of mines that are
        within one row and column of a given cell,
        not including the cell itself.
        """

        # Keep count of nearby mines
        count = 0

        # Loop over all cells within one row and column
        for i in range(cell[0] - 1, cell[0] + 2):
            for j in range(cell[1] - 1, cell[1] + 2):

                # Ignore the cell itself
                if (i, j) == cell:
                    continue

                # Update count if cell in bounds and is mine
                if 0 <= i < self.height and 0 <= j < self.width:
                    if self.board[i][j]:
                        count += 1

        return count

    def won(self):
        """
        Checks if all mines have been flagged.
        """
        return self.mines_found == self.mines

而 Sentence 类的话其实就是对应了一个集合，所以它需要实现知识表示里的前两种操作。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
class Sentence():
    """
    Logical statement about a Minesweeper game
    A sentence consists of a set of board cells,
    and a count of the number of those cells which are mines.
    """

    ...

    def known_mines(self):
        """
        Returns the set of all cells in self.cells known to be mines.
        """
        if len(self.cells) == self.count:
            return self.cells
        return set()

    def known_safes(self):
        """
        Returns the set of all cells in self.cells known to be safe.
        """
        if self.count == 0:
            return self.cells
        return set()

    def mark_mine(self, cell):
        """
        Updates internal knowledge representation given the fact that
        a cell is known to be a mine.
        """
        if cell in self.cells:
            self.cells.remove(cell)
            self.count -= 1

    def mark_safe(self, cell):
        """
        Updates internal knowledge representation given the fact that
        a cell is known to be safe.
        """
        if cell in self.cells:
            self.cells.remove(cell)

最后就是我们的 AI Agent 了，主要就是去记录一些安全格和雷格的信息，从而进行安全的移动。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
class MinesweeperAI():
    """
    Minesweeper game player
    """

    def __init__(self, height=8, width=8):

        # Set initial height and width
        self.height = height
        self.width = width

        # Keep track of which cells have been clicked on
        self.moves_made = set()

        # Keep track of cells known to be safe or mines
        self.mines = set()
        self.safes = set()

        # List of sentences about the game known to be true
        self.knowledge = []

    def mark_mine(self, cell):
        """
        Marks a cell as a mine, and updates all knowledge
        to mark that cell as a mine as well.
        """
        self.mines.add(cell)
        for sentence in self.knowledge:
            sentence.mark_mine(cell)

    def mark_safe(self, cell):
        """
        Marks a cell as safe, and updates all knowledge
        to mark that cell as safe as well.
        """
        self.safes.add(cell)
        for sentence in self.knowledge:
            sentence.mark_safe(cell)

    ...

    def make_safe_move(self):
        """
        Returns a safe cell to choose on the Minesweeper board.
        The move must be known to be safe, and not already a move
        that has been made.

        This function may use the knowledge in self.mines, self.safes
        and self.moves_made, but should not modify any of those values.
        """
        for safe_cell in self.safes:
            if safe_cell not in self.moves_made:
                return safe_cell
        return None

    def make_random_move(self):
        """
        Returns a move to make on the Minesweeper board.
        Should choose randomly among cells that:
            1) have not already been chosen, and
            2) are not known to be mines
        """
        possible_moves = set()
        for i in range(self.height):
            for j in range(self.width):
                if (i, j) not in self.moves_made and (i, j) not in self.mines:
                    possible_moves.add((i, j))
        if possible_moves:
            return random.choice(list(possible_moves))
        return None

而其中负责增加新信息的主要这个 add_knowledge(self, cell, count) 函数，这里的 cell 就是当前新格子周围的未翻开格子了，count 就是周围雷的数量，那这个函数具体干了哪些事呢？

  1. 记录并标记当前格子未安全。
  2. 添加新信息，也就是 cell = count，同时根据已知的安全格缩小 cell。
  3. 根据新的安全格，更新 KB。
  4. 通过新集合，划分子集。
  5. 再次更新 KB。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
def add_knowledge(self, cell, count):
     """
     Called when the Minesweeper board tells us, for a given
     safe cell, how many neighboring cells have mines in them.
     """

     self.moves_made.add(cell)
     self.mark_safe(cell)

     # Add new sentence to knowledge base
     new_sentence_cells = set()
     for i in range(cell[0] - 1, cell[0] + 2):
         for j in range(cell[1] - 1, cell[1] + 2):
             if 0 <= i < self.height and 0 <= j < self.width:
                 if (i, j) in self.mines:
                     count -= 1
                 elif (i, j) not in self.safes:
                     new_sentence_cells.add((i, j))
     new_sentence = Sentence(new_sentence_cells, count)
     self.knowledge.append(new_sentence)

     # Mark additional cells as safe or as mines
     for sentence in self.knowledge:
         for safe_cell in sentence.known_safes():
             self.safes.add(safe_cell)
         for mine_cell in sentence.known_mines():
             self.mines.add(mine_cell)

     # Add new sentences to knowledge base
     for sentence1, sentence2 in itertools.combinations(self.knowledge, 2):
         if sentence1.cells.issubset(sentence2.cells):
             new_sentence = Sentence(sentence2.cells - sentence1.cells, sentence2.count - sentence1.count)
         elif sentence2.cells.issubset(sentence1.cells):
             new_sentence = Sentence(sentence1.cells - sentence2.cells, sentence1.count - sentence2.count)
         if new_sentence not in self.knowledge:
             self.knowledge.append(new_sentence)

     # Remove empty sentences
     self.knowledge = [sentence for sentence in self.knowledge if sentence.cells]

     # Mark additional cells as safe or as mines
     for sentence in self.knowledge:
         for safe_cell in sentence.known_safes():
             self.safes.add(safe_cell)
         for mine_cell in sentence.known_mines():
             self.mines.add(mine_cell)

     # Mark safe cells and mines
     for safe_cell in self.safes:
         self.mark_safe(safe_cell)
     for mine_cell in self.mines:
         self.mark_mine(mine_cell)

后记

其实读到这里大家应该发现了，这扫雷写起来也不难，难的是你有没有想到用这样的数据逻辑来解释他。
